Motive Gear

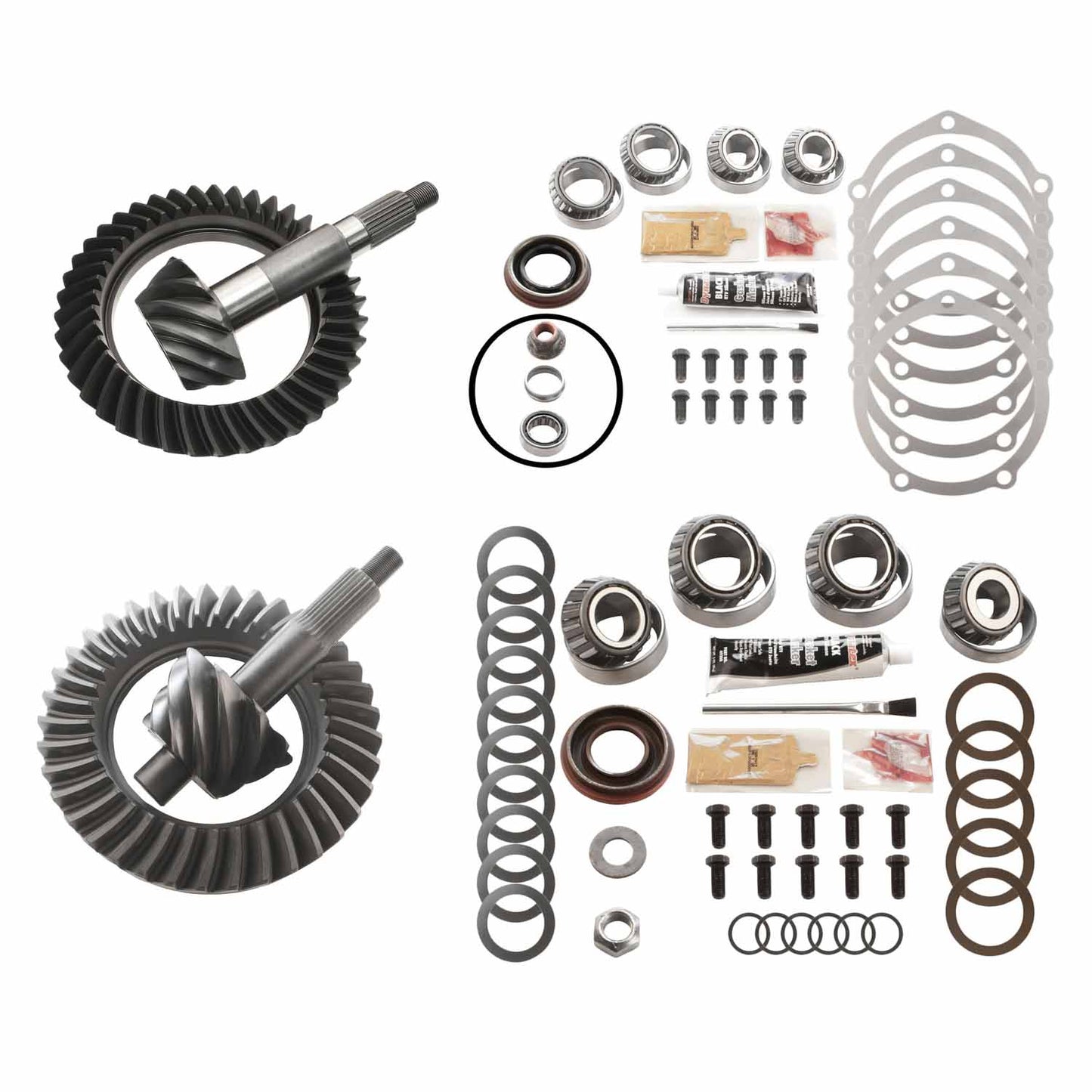

Differential Ring And Pinon Front And Rear Complete Kit

$939.99 USD

~~$939.99 USD~~ $939.99 USD

Sale Sold out

Product variants

Quantity

Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.

Attributes

GTIN: 00698231100356
Brand Name: Motive Gear
Ring Gear Bolt Quantity: 10
Cover Bolt Quantity: 10 Front (D44-409F)
Cover Bolt Quantity: Dropout Rear (F9-411)
Gear Ratio: 4.09
Gear Ratio: 4.11
Pinion Shaft Diameter: 1.376 Front (D44-409F)
Pinion Shaft Diameter: 1.313 Rear (F9-411)
Ring Gear Tooth Quantity: 45 Front (D44-409F)
Ring Gear Tooth Quantity: 41 Rear (F9-411)
Pinion Spline Count: 26 Front (D44-409F)
Pinion Spline Count: 30 Rear (F9-411)
Ring Gear Rotation: Reverse Front (D44-409F)
Ring Gear Rotation: Standard Rear (F9-411)
Pinion Gear Tooth Quantity: 11 Front (D44-409F)
Pinion Gear Tooth Quantity: 9 Rear (F9-411)
Differential Case Design Type: Dana 44 Reverse
Differential Case Design Type: Ford 9
Ring Gear Outside Diameter: 8.5 Front (D44-409F)
Ring Gear Outside Diameter: 9 Rear (F9-411)
Ring Gear Material: 8620 Steel
Differential Carrier Break: 3.92 Ratio and Higher

Extended Information

Country of Origin: United States
Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packing Information

Quantity of Each: 1
Package UOM: EA
Dimension: 16.0000 x 16.0000 x 12.0000 inches
Weight: 42.8490 lb
